Features / Advantages
|
Thermally conductive underfill. Capillary
Flow. Dielectric. Low thermal expansion and high Tg.
|
Modified with silicone copolymer for
moisture resistance. Good Dielectric. Low current
leakage.
|
Low CTE, high Tg underfill. Excellent
thermal stability. Capillary flow. Good Dielectric.
Low current leakage.
|

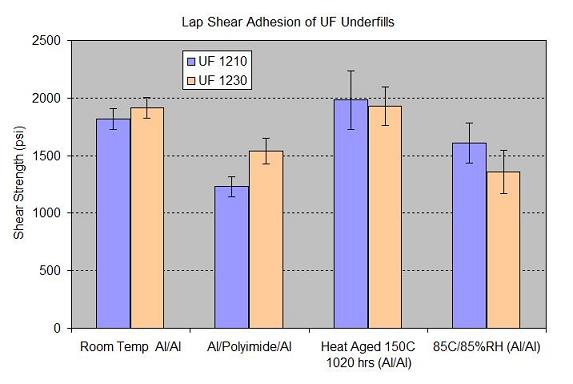

High bonding strength with rubber toughened.
Capillary flow. Strong bond to polyimide, silicone
nitride surfaces.
|
Reworkable underfill formulation. Capillary
Flow. Apply heat to lift the BGA / die.
|
Soft epoxy encapsulant for thermal stress
release. Capillary flow. Excellent bonding to most
plastic and metal surfaces.
|
|
Typical Application
|
Semiconductor encapsulant for chip-on-board,
Bare Die, BGA, CSP, etc, that need to good heat dissipation
|
For underfill or encapsulation applications
in electronics that require moisture resistance and
strong bonding.
|
Underfilling or encapsulating for chip-on-board,
bare die, BGA, flip-chip, CSP,applications that require
low CTE.
|
For underfill or encapsulation applications
in electronics that require strong bonding and toughness.
|
To underfill components such as chip-on-board,
bare die, BGA, flip-chip, CSP, etc. that require reworkable
capability.
|
Low stress bond & flexible underfill.
Bond to PBT, PPS, Nylon, PC, Phenolics and other difficult
materials.
|
|

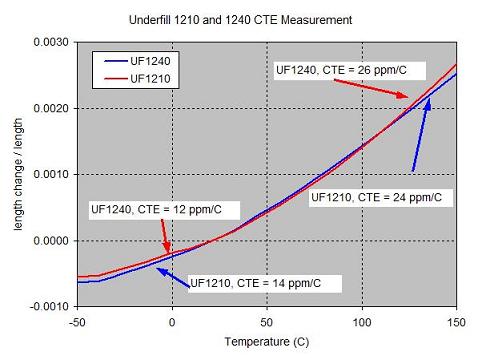

CTE (ppm/C)
|
< 80 (above Tg)
23 (below Tg)
|
125 (above Tg)
53 (below Tg)
|
< 80 (above Tg)
< 20 (below Tg)
|
89 (above Tg)
22 (below Tg)
|
< 110 (above Tg)
< 50 (below Tg)
|
115
|
